ESCO LIFESCIENCES
Biological Safety Cabinet
A Biological Safety Cabinet (BSC), also known as a Biosafety Cabinet, is used for handling pathogenic biological samples or procedures requiring a sterile work zone. It creates controlled inflow and downflow air to protect the operator. The downflow air passes through ULPA/HEPA filters, producing an ISO Class 3 work area that prevents cross-contamination. Exhaust air is also ULPA/HEPA filtered to protect the environment.

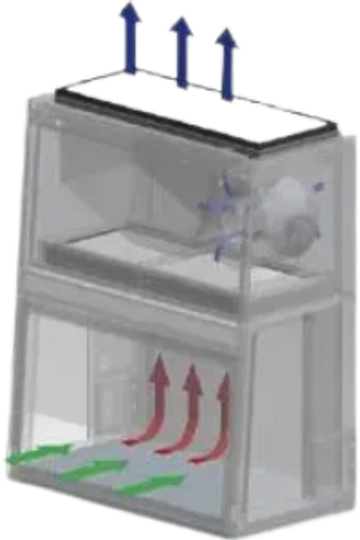

Class I Biological Safety Cabinet
AC1-E
A Class I Biosafety cabinet protects the operator and the environment from exposure to biohazards. It does not prevent samples being handled in the cabinet from being exposed to contaminants that may be present in room air. Naturally, there is a possibility of cross-contamination that may affect experimental consistency. Consequently, the scope and application of Class I cabinets is limited, and it is largely considered obsolete.

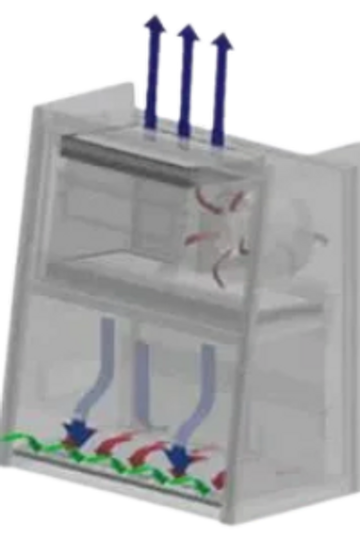

Class II Biological Safety Cabinet
LA2-S G4
The most common Class II cabinet. It has a plenum from which 30% of air is exhausted, and 70% re-circulated to the work area as the downflow.
Stated from NSF/ ANSI 49:2010, both the Class II Type A1 and Type A2 must have the positively-pressurized contaminated plenum to be surrounded by negative pressure. In case there is a leakage on the positive plenum, the leaking aerosol will be pulled by the negative pressure back to the positive plenum, and it will not leak out.

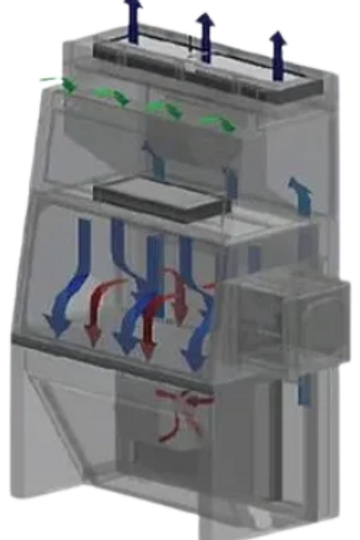

Class III Biological Safety Cabinet
AC3-4B
Suitable for work with microbiological agents assigned to biosafety levels 1, 2, 3 and 4. They are frequently specified for work involving the most lethal biological hazards.
Work is performed through glove ports in the front of the cabinet. During routine operation, negative pressure relative to the ambient environment is maintained within the biosafety cabinet. This provides an additional fail-safe mechanism in case physical containment is compromised.

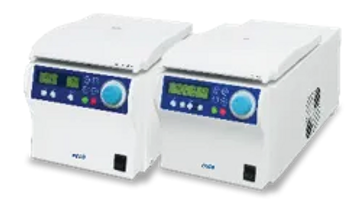

Micro Centrifuge
Micro centrifuge is a compact type of centrifuge ideal for separating small liquid samples at high speed (usually more than 6,000 rpm). Most micro centrifuge have available PCR strips rotor, adapters for 0.2 ml PCR tubes, and microhematocrit rotor.
Micro Centrifuge
Must have features:
- Maintenance-free, brushless motor that prolongs the lifespan and saves maintenance cost
- Dedicated superior safety features including safety lid lock design, imbalance detection system, rotor-auto recognition, overspeed and over temperature protection
- Intelligent microprocessor control system that can display set and actual parameters simultaneously
- Emergency switch function enables manual opening of the lid in case of power failure or malfunction
- Automatic conversion of parameters

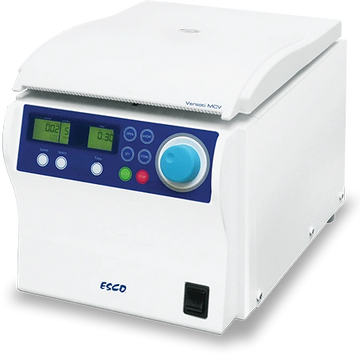

Versati™ Micro Ventilated Centrifuge
MCV-88
Specifications:
- Small capacity liquid samples
- Ambient temperature
- Audio and visual notification system
- Superior safety features
- Time-setting spin up to 99 hrs 59 min 10sec
- Dimensions (WxDxH): 280 x 389 x 304 mmd a description about this item

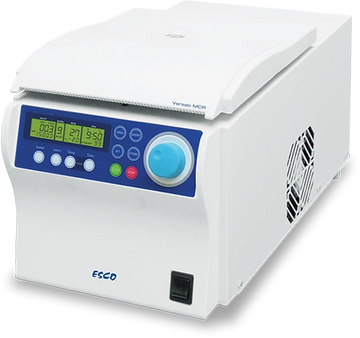

Versati™ Micro Refrigerated Centrifuge
MCR-88
Specifications:
- Small capacity liquid samples
- Refrigerated (temperature setting range: -20°C to 40°C)
- Audio and visual notification system
- Superior safety features
- Time-setting spin up to 99 hrs 59 min 10sec
- Dimensions (WxDxH): 280 x 563 x 294 mmn about this item

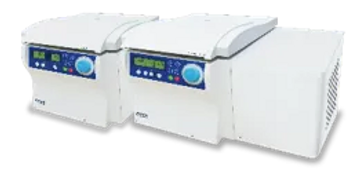

Tabletop Centrifuge
Tabletop centrifuge is sometimes referred to as benchtop centrifuge. It is a larger type of centrifuge ideal for separating larger liquid samples at high speed (usually more than 4,000 rpm). While micro centrifuges run liquid samples using fixed-angle rotor only, most tabletop centrifuge have another type of rotor called swing-bucket. This type of rotor can spin samples up to 90° angle at lower speed. Tabletop centrifuge is commonly used in running various sample tubes at once.
Tabletop Centrifuge
Must have features:
- Maintenance-free, brushless motor that prolongs the lifespan and saves maintenance cost
- Dedicated superior safety features including safety lid lock design, imbalance detection system, rotor-auto recognition, overspeed and over temperature protection
- Intelligent microprocessor control system that can display set and actual parameters simultaneously
- Emergency switch function enables manual opening of the lid in case of power failure or malfunction
- Automatic conversion of parameters

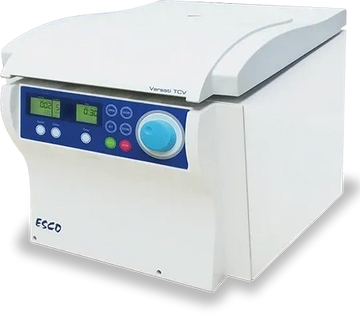

Versati™ Tabletop Ventilated Centrifuge
TCV-1500
Specifications:
- Large capacity liquid samples
- Ventilated temperature
- Audio and visual notification system
- Superior safety features
- Available fixed-angle and swing-bucket rotors
- Time-setting spin up to 99 hrs 59 min 10sec
- Dimensions (WxDxH): 438 x 532 x 374 mm

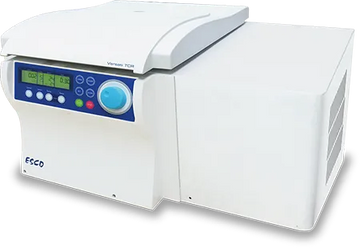

Versati™ Tabletop Refrigerated Centrifuge
TCR-1500
Specifications:
- Small capacity liquid samples
- Refrigerated (temperature setting range: -20°C to 40°C)
- Audio and visual notification system
- Superior safety features
- Time-setting spin up to 99 hrs 59 min 10sec
- Dimensions (WxDxH): 280 x 563 x 294 mmn about this item
ESCO LIFESCIENCES
Ducted Fume Hood
A type of ventilation system that primarily functions to provide personnel protection against toxic fumes, vapors, and dust. This containment device is connected to a ducting where contaminants pass before being exhausted into the environment. Its secondary function includes protection against chemical spills, runaway reactions, and fires by acting as a physical barrier. Esco Frontier® Ducted Fume hoods superior containment and performance comply with ASHRAE 110 and EN 14175 standards.
Esco Frontier® Ducted Fume hoods
Must have features:
- Compliance with ASHRAE 110 and EN 14175 for superior fume containment
- Robust construction for withstanding chemicals even at high temperatures
- Basic rocker switches for hassle-free operation
- Variety of worktop configurations to accommodate different applications
- Offers a broad range of accessories and options
- Unique baffle design to prevent fume accumulation in workzone
- Equipped with safety features such as: sash stop limit and airflow monitoring system
- Ergonomic features
Frontier® Mono
EFH
The most basic of all Esco ducted fume hoods, with a single-wall construction, is designed for a fully maximized internal work zone. It is generally applicable for common laboratory applications such as boiling, evaporation, drying, and other applications that emit noxious fumes and vapors. Specifications:
- ASHRAE 110-2016 certified
- Single-wall design
- Worktop and service fixtures are installed on the base cabinet
- No sash sloping
- Phenolic resin liner and baffle
- Available sizes: 4, 5 and 6 ft
Frontier® Duo- A Series
EFD-A
An upgrade of its predecessors, representing design & engineering innovations that are at the forefront of fume hood technology. It has a rugged dual wall construction offering a robust design that allows service fixtures & electrical outlets to be mounted on both sides of the wall. It comes standard with:
- Rocker switches
- 1 x Water Enhanz™ Remote Controlled Fixture Plumbed to the Top
- 1 x Gas Enhanz™ Remote Controlled Fixture Plumbed to the Top
- 4 x Single Electrical Outlet with Splash Proof Cover
Frontier® Duo- B Series
EFD-B
It has a dual wall construction and is equipped with a microprocessor control system that shows continuous display of face velocity. This fume hood is designed to provide excellent fume containment and operator comfort.
Each EFD-B ducted fume hood comes standard with:
- 1 x Water Enhanz™ Remote Controlled Fixture Plumbed to the Top
- 1 x Gas Enhanz™ Remote Controlled Fixture Plumbed to the Top
- 4 x Single Electrical Outlet with Splash Proof Cover
Frontier® Acela
EFA
Esco Frontier® Acela™ (EFA) a high-performance, low-flow, ducted fume hood designed with precisely tuned aerodynamics, outstanding user safety, design flexibility, energy-efficiency, and aesthetics. A conventional laboratory fume hood that lets you save while keeping you safe.
Each EFA Fume Hood comes standard with:
- 1 x Water Enhanz™ Remote Controlled Fixture Plumbed to the Top
- 1 x Gas Enhanz™ Remote Controlled Fixture Plumbed to the Top
- 4 x Single Electrical Outlet with Splash Proof Cover
Frontier® Acid Digestion
EFQ
Esco Frontier® Acid Digestion Fume Hood (EFQ) is a ducted fume hood designed for performing acid digestion or dealing with chemicals at high temperatures. This ducted fume hood is not suitable for handling perchloric acid applications.
Each EFQ Fume Hood comes standard with:
- 1 x Water Enhanz™ Remote Controlled Fixture Plumbed to the Top
- 1 x PP Drip Cup located on left hand side of worktop
- 1 x Gas Enhanz™ Remote Controlled Fixture Plumbed to the Top
- 4 x Single Electrical Outlet with Splash Proof Cover
Frontier® Acela Mining
EFA-M
Esco Frontier® Acela™ Mining (EFA-M) is a ducted fume hood designed specifically for users in the mining industry. It has a 100mm deeper workzone to help contain chemical splashes and spills from highly corrosive chemicals.
Each EFA-M Fume Hood comes standard with:
- 1 x Water Enhanz™ Remote Controlled Fixture Plumbed to the Top
- 1 x Gas Enhanz™ Remote Controlled Fixture Plumbed to the Top
- 4 x Single Electrical Outlet with Splash Proof Cover
Frontier® Acela XP
EFA-XP
An explosion-proof ducted fume hood that provides the highest level of chemical containment and almost no possibility of sparks in the workzone. This laboratory containment device is suitable for applications or rooms which have presence of highly flammable or explosive gases and vapours especially in the Oil & Gas industries.
Each comes standard with:
- 1 x Water Enhanz™ Remote Controlled Fixture Plumbed to the Top
- 1 x Gas Enhanz™ Remote Controlled Fixture Plumbed to the Top
Frontier® Perchloric Acid
EFP
Esco Frontier® Perchloric Fume Hood (EFP) is a ducted fume hood designed for routine handling of hot perchloric acid and hot nitric acid. However, it is not advisable for applications involving sulphuric acid, acetic acid, organic solvents or any combustible materials.
When heated, perchloric acid vaporizes and condenses to form metallic perchlorates on hood, duct, and fan components. In addition to being highly corrosive, condensed vapors can react with hood gaskets, greaser, and collected mater
Frontier® Floor Mounted
EFF
A ducted fume hood designed to provide a comfortable space when users have to deal with tall apparatus and large hazardous containers that require increased height area. It is built with a vertical sliding sash for ease of access when transporting apparatus into the hood.
Each comes standard with:
- 1 x Water Enhanz™ Remote Controlled Fixture Plumbed to the Top
- 1 x Gas Enhanz™ Remote Controlled Fixture Plumbed to the Top
- 4 x Single Electrical Outlet with Splash Proof Cover
Frontier® Radioisotope
EFI
A ducted fume hood designed to provide a comfortable space when users have to deal with tall apparatus and large hazardous containers that require increased height area. It is built with a vertical sliding sash for ease of access when transporting apparatus into the hood.
Each comes standard with:
- 1 x Water Enhanz™ Remote Controlled Fixture Plumbed to the Top
- 1 x Gas Enhanz™ Remote Controlled Fixture Plumbed to the Top
- 4 x Single Electrical Outlet with Splash Proof Cover
Frontier® PPH
PPH
Provides the highest level of protection & containment against highly corrosive chemicals. Full polypropylene (PP) interior makes the fume hood metal-free & ideal for sensitive work. PP has an excellent rating against corrosion & chemical staining.
Each comes standard with:
- 1 x Water Enhanz™ Remote Controlled Fixture Plumbed to the rear
- 1 x Gas Enhanz™ Remote Controlled Fixture Plumbed to the rear
- 1 x PP Drip Cup located on left hand side of worktop
- 4 x Single Electrical Outlet with Splash Proof Cov
